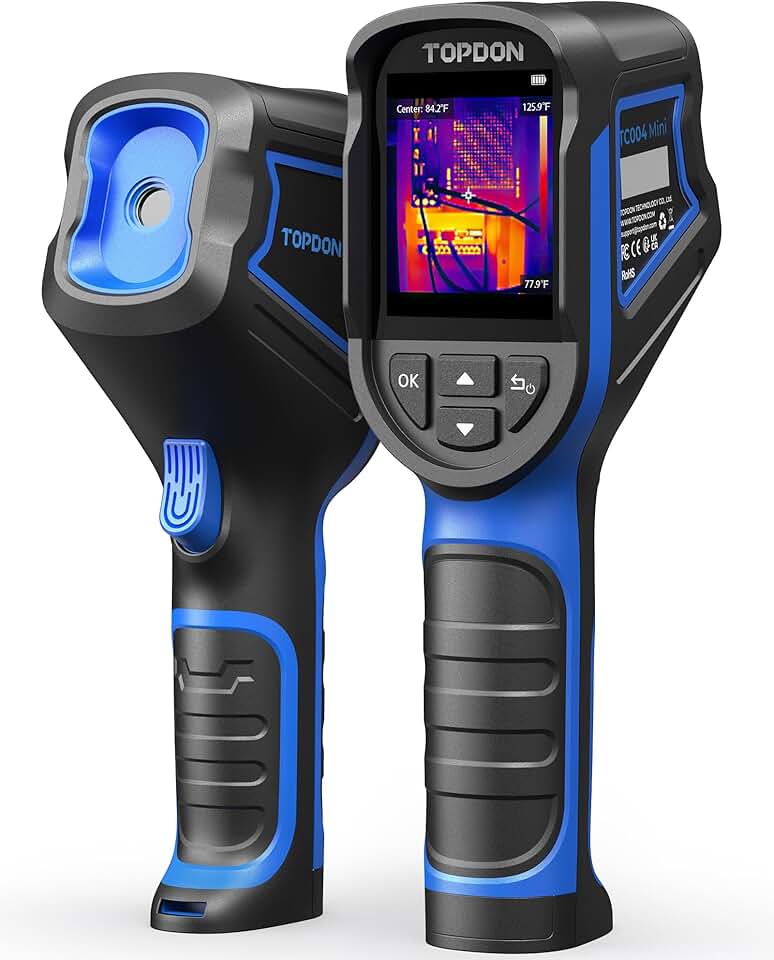

TOPDON TC004 Mini Thermal Camera: Essential & Impressive

The TOPDON TC004 Mini Thermal Camera emerges as a groundbreaking tool for both DIY enthusiasts and seasoned professionals in the home improvement and inspection sectors. This compact device offers advanced thermal imaging capabilities, making it indispensable for identifying hidden issues like insulation gaps, electrical faults, and water leaks. Its user-friendly design and robust feature set position it as a top contender in the portable thermal camera market.

TOPDON TC004 Mini Thermal Camera Overview

The TOPDON TC004 Mini Thermal Camera represents a significant leap in accessible thermal imaging technology. Designed for versatility and ease of use, this handheld device empowers users to visualize temperature differences across various surfaces and objects. It’s no longer just a tool for specialized professionals; now, homeowners and small business owners can leverage this technology for everyday tasks.

This mini thermal camera is engineered to be exceptionally portable, fitting comfortably in a pocket or tool belt. Its lightweight construction ensures that it can be carried effortlessly throughout a workday, whether you are conducting a full home inspection or simply troubleshooting a specific appliance. The robust build quality also means it can withstand the rigors of typical job site environments.

At its core, the TOPDON TC004 utilizes infrared technology to detect and display heat signatures. This capability allows it to reveal thermal anomalies that are invisible to the naked eye. Such anomalies often indicate underlying problems, such as poor insulation, drafts, overloaded circuits, or plumbing leaks, which can lead to significant energy waste or costly repairs if left unaddressed.

The device boasts a 240 x 240 TISR (Thermal Imaging Super Resolution) display, which enhances the clarity of the thermal images presented. While the native IR resolution is 128 x 128, the TISR technology interpolates data to provide a more detailed and understandable visual representation of temperature gradients. This means you get a clearer picture of where heat is escaping or building up.

One of the most impressive aspects of the TOPDON TC004 Mini Thermal Camera is its remarkable 15-hour battery life. This extended operational time ensures that users can complete extensive inspections without the constant worry of needing a recharge. For professionals on long jobs or DIYers tackling multiple projects, this feature is invaluable, minimizing interruptions and maximizing productivity.

The inclusion of High/Low Temperature Alerts is another critical feature that sets this camera apart. Users can set specific temperature thresholds, and the device will visually and/or audibly notify them when temperatures fall outside these predefined ranges. This is particularly useful for quickly pinpointing extreme hot spots in electrical panels or cold spots indicating air leaks.

Furthermore, the 25Hz refresh rate ensures smooth, real-time thermal video, which is crucial when scanning large areas or tracking moving heat sources. This responsive display minimizes lag and provides a fluid user experience, allowing for more accurate and efficient diagnostics. The ability to see changes instantly is a major benefit for dynamic environments.

The TOPDON TC004 Mini Thermal Camera is not just about detecting temperatures; it’s about providing actionable insights. By visualizing heat patterns, users can make informed decisions about repairs, energy efficiency improvements, and preventative maintenance. It transforms an abstract concept like heat loss into a tangible, visual problem that can be easily identified and addressed.

Its intuitive interface and straightforward controls make it accessible even for those new to thermal imaging. There’s no steep learning curve, allowing users to pick it up and start detecting issues almost immediately. This accessibility democratizes thermal technology, bringing professional-grade diagnostic capabilities to a broader audience.

The device also comes with an auto-shutdown feature, which helps conserve battery life when the camera is not actively in use. This intelligent power management system further contributes to its impressive endurance and reduces the need for frequent charging, enhancing its overall practicality and convenience for daily use.

Overall, the TOPDON TC004 Mini Thermal Camera is a well-rounded, feature-rich device that offers substantial value for its price point. It balances portability, performance, and user-friendliness, making it an excellent investment for anyone looking to gain a deeper understanding of their environment’s thermal dynamics. Whether for home inspections, HVAC diagnostics, or electrical troubleshooting, this camera delivers reliable results.

Key Features & Specs of the TOPDON TC004 Mini Thermal Camera

The TOPDON TC004 Mini Thermal Camera is packed with features designed to offer precise and reliable thermal imaging in a compact form factor. Understanding these specifications is key to appreciating its capabilities and how it stands out in the market. Each component contributes to its overall effectiveness as a diagnostic tool.

240 x 240 TISR Resolution: While the native infrared sensor resolution is 128 x 128 pixels, the TC004 employs a sophisticated Thermal Imaging Super Resolution (TISR) algorithm. This technology processes the raw data to create a more detailed and clearer image, effectively doubling the perceived resolution. This allows users to discern finer details in thermal patterns, which is critical for accurate fault detection.

128 x 128 IR Resolution: This is the true optical resolution of the infrared sensor. For a mini thermal camera in this price range, a 128×128 IR resolution is quite respectable. It provides sufficient detail to identify significant temperature anomalies, such as cold bridges, overheating components, or areas of moisture intrusion, without being overly pixelated.

15-Hour Battery Life: This is arguably one of the most compelling features of the TOPDON TC004. A 15-hour continuous operation time significantly reduces downtime due to charging. It allows professionals to conduct multiple inspections over an entire day or even longer without needing to find a power source. This extended battery life enhances productivity and reliability in the field.

25Hz Refresh Rate: The frame rate, or refresh rate, dictates how smoothly thermal images are displayed. A 25Hz refresh rate means the camera captures and updates images 25 times per second. This high rate ensures that real-time movements and rapid temperature changes are displayed fluidly, preventing lag and making it easier to scan large areas quickly and identify transient thermal events.

High/Low Temperature Alerts: This practical feature allows users to set custom temperature thresholds. When the camera detects temperatures above a high limit or below a low limit, it provides an immediate visual or audible alert. This is incredibly useful for focused inspections, helping users quickly identify critical hotspots in electrical systems or significant cold spots indicating insulation failures.

Auto Shutdown: To further conserve the impressive battery life, the TC004 includes an intelligent auto-shutdown function. If the camera is left idle for a user-defined period, it will automatically power down. This prevents accidental battery drain and ensures the device is ready for use when needed, contributing to its overall efficiency.

Compact and Ergonomic Design: The physical design of the TOPDON TC004 Mini Thermal Camera is optimized for portability and single-handed operation. Its small size allows it to be easily stored in a toolbox, pocket, or attached to a belt. The ergonomic grip ensures comfortable handling during prolonged use, reducing user fatigue.

Temperature Range and Accuracy: While specific ranges can vary, typical mini thermal cameras like the TC004 offer a broad temperature measurement range, often from -4°F to 1022°F (-20°C to 550°C), with an accuracy of around ±2°C or ±2%. This range covers most residential and light commercial inspection needs, from freezing pipes to overheating components.

Emissivity Adjustment: The ability to adjust emissivity is crucial for accurate temperature readings on different surfaces. The TOPDON TC004 likely includes this feature, allowing users to fine-tune the camera for materials like wood, metal, or concrete. This ensures that the displayed temperatures are as precise as possible, compensating for varying surface radiation properties.

Multiple Color Palettes: Thermal cameras often offer various color palettes (e.g., Iron, Rainbow, White Hot, Black Hot). These palettes help in visualizing temperature differences more effectively depending on the application and user preference. The TC004 typically includes several options to enhance image interpretation.

These combined features make the TOPDON TC004 Mini Thermal Camera a powerful yet accessible tool. It strikes an excellent balance between advanced diagnostic capabilities and user-friendliness, making it suitable for a wide array of home improvement and inspection tasks. Its robust feature set directly addresses common pain points for both DIYers and professionals seeking efficiency and accuracy.

Pros & Cons of the TOPDON TC004

Every tool has its strengths and weaknesses, and the TOPDON TC004 Mini Thermal Camera is no exception. A balanced perspective is essential for potential buyers to make an informed decision. Here, we delve into the key advantages and potential drawbacks of this innovative thermal imager.

Pros:

Exceptional Portability and Compact Design: The TC004’s small form factor is a major advantage. It easily fits into a pocket or a small pouch, making it incredibly convenient for quick spot checks or carrying throughout a long workday. This portability ensures it’s always on hand when an issue arises, unlike bulkier thermal cameras that might be left behind.

Outstanding 15-Hour Battery Life: The extended battery life is a standout feature, significantly reducing the need for frequent recharging. This allows for prolonged use on job sites or during extensive home inspections without interruption. It translates directly to increased productivity and less frustration, a crucial factor for both professionals and dedicated DIYers.

User-Friendly Interface and Operation: The camera is designed with simplicity in mind. Its intuitive controls and clear display make it accessible even for users new to thermal imaging technology. There’s no steep learning curve, allowing individuals to quickly grasp its functions and start using it effectively right out of the box.

Real-Time 25Hz Refresh Rate: The smooth, 25 frames per second refresh rate provides a fluid viewing experience. This is vital for scanning large areas efficiently and accurately tracking dynamic temperature changes. It helps in quickly identifying anomalies without the choppiness often associated with lower refresh rate cameras.

High/Low Temperature Alerts for Quick Diagnostics: The ability to set custom temperature thresholds and receive alerts is a powerful diagnostic aid. It enables users to rapidly pinpoint critical hot or cold spots, such as an overheating circuit breaker or a significant air leak, without constantly monitoring the display. This feature streamlines the inspection process and highlights urgent issues.

240 x 240 TISR Enhanced Resolution: While the native IR resolution is 128×128, the TISR technology enhances the visual clarity, providing a more detailed image. This interpolation helps in better understanding thermal patterns and identifying smaller discrepancies that might be missed with a lower effective resolution, offering a clearer picture for analysis.

Durable Construction: Built to withstand typical work environments, the TC004 features a robust construction. This durability ensures that the camera can endure accidental drops and bumps, making it a reliable tool for various applications, from construction sites to busy workshops.

Affordable Entry Point for Thermal Imaging: Compared to many professional-grade thermal cameras, the TOPDON TC004 offers excellent value. Its price point makes advanced thermal imaging accessible to a broader audience, including homeowners and small businesses, who might not justify the cost of higher-end units.

Cons:

Native 128 x 128 IR Resolution Limitations: While the TISR helps, the underlying 128×128 IR resolution is still modest compared to high-end professional thermal cameras (which can go up to 640×480 or higher). For highly detailed inspections or very small components, the image might lack the fine granularity required by some specialists, potentially requiring closer proximity to the target.

Limited Advanced Analysis Features: The TC004 is designed for simplicity and efficiency, meaning it might not offer the extensive analytical capabilities found in more expensive models. Features like advanced radiometric analysis, sophisticated reporting tools, or integration with complex software platforms are typically absent. This makes it less suitable for highly specialized scientific or industrial applications requiring in-depth thermal data processing.

Smaller Display Size: As a
