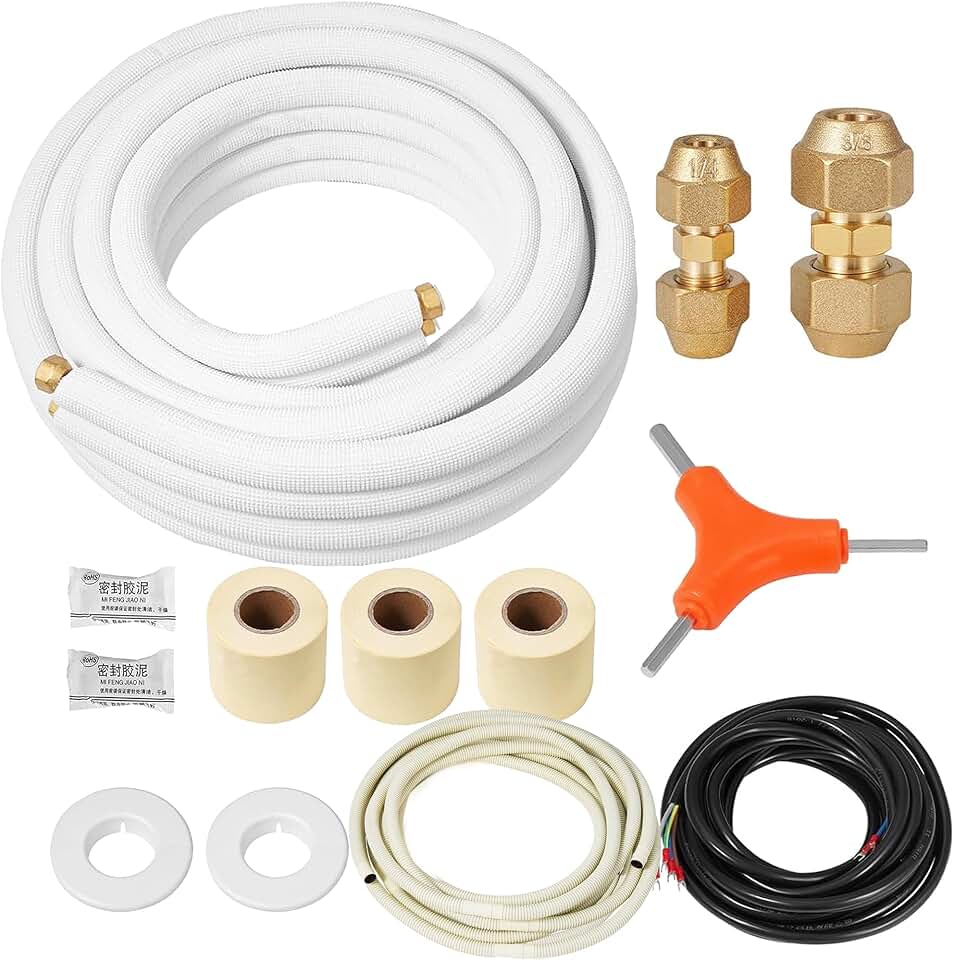

Mini Split Line Set: Ultimate Kit – Best Value

The Mini Split Line Set is an absolutely essential component for anyone looking to install a ductless mini-split air conditioning or heat pump system. This particular kit offers a convenient and comprehensive solution, designed to simplify the connection between your indoor air handler and outdoor condenser unit. It comes pre-flared and insulated, making the installation process significantly smoother for both professionals and DIY enthusiasts.

Mini Split Line Set Overview

The Mini Split Line Set is a critical component in any ductless mini-split air conditioning or heat pump installation. It serves as the vital connection, transporting refrigerant between the indoor evaporator unit and the outdoor condenser. This particular kit is designed to streamline the installation process, offering a pre-assembled and pre-insulated solution.

Traditional mini-split installations often require technicians to cut, flare, and insulate copper tubing on-site, a process that demands specialized tools and expertise. This 25-foot line set eliminates much of that intricate work. It arrives with the copper pipes already flared at the ends and equipped with the necessary nuts, ready for direct connection.

The insulation is another key aspect of this line set. It features a 3/8-inch thickened PE (polyethylene) insulation coil, which is crucial for maintaining the temperature of the refrigerant. Proper insulation prevents energy loss, ensuring that your mini-split system operates efficiently, whether it’s cooling your home in summer or heating it in winter.

The length of 25 feet is a common size, suitable for a wide range of residential and light commercial installations. This length allows for flexible placement of both the indoor and outdoor units, accommodating various building layouts and aesthetic preferences. Choosing the correct length is vital for system performance and longevity.

Understanding the components of a line set is important for DIYers. It typically consists of two copper lines: a larger suction line (low pressure, gas) and a smaller liquid line (high pressure, liquid). This specific kit includes a 3/8-inch and a 1/4-inch O.D. (outer diameter) pipe, which are standard sizes for many smaller to medium-sized mini-split units.

The quality of the copper tubing is paramount for preventing leaks and ensuring long-term system reliability. High-grade copper is resistant to corrosion and can withstand the pressures and temperature fluctuations of refrigerant. This line set aims to provide a durable and reliable connection, reducing the risk of costly future repairs.

For those undertaking a mini-split installation themselves, a pre-flared and insulated line set can save a significant amount of time and reduce the potential for errors. Flaring copper tubing correctly requires precision; an improper flare can lead to refrigerant leaks, which are detrimental to both system performance and the environment. This kit addresses that challenge directly.

Furthermore, the PE insulation offers protection against UV radiation, moisture, and physical damage, contributing to the line set’s longevity. This protective layer is integral to the overall efficiency and durability of your mini-split system, making it a wise investment for any installation project. Proper insulation also prevents condensation, which can lead to mold issues.

This Mini Split Line Set is designed with ease of use and performance in mind, offering a robust solution for connecting your mini-split system. It represents a practical choice for those seeking a reliable, ready-to-install option without compromising on quality or efficiency. Its comprehensive design helps ensure a successful and energy-efficient HVAC setup.

Mini Split Line Set Key Features & Specs

The Mini Split Line Set comes packed with features designed to facilitate a smooth and efficient mini-split installation. Understanding these specifications is crucial for ensuring compatibility with your specific mini-split unit and for appreciating the value this kit brings to your project.

One of the most prominent features is its 25-foot length. This standard length provides ample reach for most residential and many light commercial applications, allowing flexibility in positioning both the indoor and outdoor units. It’s long enough to bridge typical distances without excessive slack or the need for extensions.

The line set includes two distinct copper pipes: a 3/8-inch O.D. pipe and a 1/4-inch O.D. pipe. These are very common sizes for mini-split systems ranging from 9,000 BTU to 18,000 BTU, and sometimes even 24,000 BTU units, depending on the manufacturer’s specifications. Always verify your mini-split unit’s requirements before purchasing.

A significant time-saver is the inclusion of pre-flared ends with nuts. Flaring copper tubing is a delicate process that requires precision tools and skill. Improper flaring is a leading cause of refrigerant leaks. With pre-flared ends, you eliminate this potential point of failure and significantly reduce installation time and complexity.

The 3/8-inch thickened PE insulated coil kit is another essential feature. Each copper line is individually insulated with durable polyethylene foam. This insulation is critical for maintaining the refrigerant’s temperature, preventing heat gain in cooling mode and heat loss in heating mode, thereby maximizing energy efficiency.

The thickness of the insulation, 3/8 inch, offers a good balance between thermal performance and flexibility. It protects the copper lines from external temperature fluctuations, UV degradation, and minor physical abrasions. This contributes directly to the longevity and efficiency of your mini-split system.

The materials used are chosen for durability and performance. The copper tubing is typically made from high-purity copper, ensuring excellent thermal conductivity and resistance to corrosion. This high-quality material is essential for safely containing refrigerants under pressure over many years of operation.

Compatibility is key, and this line set is explicitly designed for use with mini-split air conditioner & heat pump systems. It supports the bi-directional flow of refrigerant required for both cooling and heating cycles. This versatility makes it suitable for year-round comfort solutions.

While the product description doesn’t detail specific pressure ratings, standard mini-split line sets are manufactured to withstand the high pressures involved in HVAC systems, including those of modern refrigerants like R410A. It’s important that all components, including the flared nuts, are robust enough for this application.

The design of the insulation also helps to prevent condensation from forming on the cold refrigerant lines. Condensation can lead to water damage, mold growth, and reduced insulation effectiveness over time. The sealed nature of the PE insulation acts as a vapor barrier, mitigating these risks effectively.

In summary, the specific features of this Mini Split Line Set — its length, pipe diameters, pre-flared connections, and robust insulation — collectively aim to provide a reliable, efficient, and user-friendly solution for mini-split installations. It addresses common installation challenges by offering a ready-to-use, high-quality component.

Pros & Cons

Evaluating the advantages and disadvantages of any product is crucial for making an informed purchase decision. The Mini Split Line Set, while offering significant benefits, also has certain limitations that potential buyers should consider. Here’s a balanced look at its pros and cons.

Pros:

• Time-Saving Pre-Flared Ends: The most significant advantage is that the copper lines come pre-flared with nuts attached. This eliminates the need for a specialized flaring tool and the skill required to make perfect flares, which can be a major hurdle for DIY installers. It drastically reduces installation time and greatly minimizes the risk of leaks due to improper flaring.
• High-Quality, Thickened PE Insulation: The 3/8-inch thick polyethylene insulation is a substantial benefit. It ensures optimal thermal performance, preventing energy loss during both cooling and heating cycles. This contributes to the overall energy efficiency of your mini-split system and helps you save on utility bills. The insulation also protects the copper from environmental factors.
• Standard 25-Foot Length: The 25-foot length offers excellent versatility for most residential and many commercial installations. It provides enough reach to connect indoor and outdoor units without requiring extensions, which can introduce additional connection points and potential leak risks. This standard length simplifies planning.
• Durable Copper Construction: The use of high-quality copper tubing ensures longevity and reliability. Copper is an excellent material for refrigerant lines due to its corrosion resistance, thermal conductivity, and ability to withstand the pressures of HVAC systems. This means fewer worries about leaks or material degradation over time.
• Convenience and Ease of Installation: For those who are not HVAC professionals, this pre-assembled kit significantly simplifies the installation process. The ready-to-connect nature of the line set reduces the need for complex tools and specialized training, making mini-split installation more accessible to a wider audience. It’s a true plug-and-play solution.
• Reduced Risk of Installation Errors: By providing pre-flared connections and insulation, the kit minimizes the chances of common installation mistakes, such as poorly flared connections or inadequate insulation. This leads to a more reliable and efficient system from day one, avoiding costly callbacks or repairs.

Cons:

• Limited to Specific Pipe Diameters: This line set is specifically designed for 3/8-inch and 1/4-inch O.D. pipes. While these are common sizes for many mini-split units, they are not universal. Larger capacity mini-splits (e.g., 36,000 BTU and above) often require larger diameter lines (e.g., 5/8-inch or 1/2-inch), making this kit incompatible with such systems.
• Insulation May Need Additional Protection in Harsh Environments: While the 3/8-inch PE insulation is good, in extremely harsh climates with intense UV exposure, very low temperatures, or high humidity, additional protective wrapping or a line set cover might be advisable. This extra step would ensure maximum longevity and efficiency, especially for outdoor runs.
• Fixed Length: The 25-foot length, while versatile, is fixed. If your indoor and outdoor units are closer than 25 feet, you will have excess tubing that needs to be coiled neatly, which can be aesthetically challenging. If the distance is greater, you would need to purchase an additional line set or extensions, adding to cost and complexity.
• Potential for Damage During Shipping/Handling: Although packaged, copper tubing can be susceptible to kinks or damage if mishandled during shipping or installation. While not unique to this product, it’s a consideration for any line set purchase. Always inspect the lines carefully upon arrival for any signs of damage before installation.

Overall, the advantages of this Mini Split Line Set, particularly its pre-flared and insulated design, make it an attractive option for many. However, carefully checking compatibility with your mini-split unit and considering your specific installation environment are essential steps before committing to this particular kit.

Who Should Buy the Mini Split Line Set?

Deciding if the Mini Split Line Set is the right choice for your project involves understanding your needs, skill level, and the specifics of your mini-split system. This product is particularly well-suited for several distinct groups of buyers, each benefiting from its unique features.

DIY Homeowners: This line set is an excellent option for homeowners looking to install a mini-split system themselves. The pre-flared ends eliminate the most technically challenging part of the installation process – creating perfect flares. This significantly lowers the barrier to entry for DIY projects, reducing the need for specialized tools and training.

First-Time Mini-Split Installers: If you’re new to mini-split installations, whether as a homeowner or a budding tradesperson, this kit offers a forgiving and straightforward approach. It minimizes potential points of failure often associated with inexperience, such as improper flaring or insufficient insulation, leading to a more successful first installation.

Budget-Conscious Installers: While professional installation of a mini-split can be costly, opting for a DIY approach with a pre-made line set like this can save a considerable amount of money. The upfront cost of this kit is generally less than purchasing raw copper tubing, flaring tools, and insulation separately, especially if you won’t use the tools frequently.

Installers of Smaller to Mid-Sized Mini-Splits: Given the 3/8-inch and 1/4-inch pipe diameters, this line set is ideal for mini-split units typically ranging from 9,000 BTU to 24,000 BTU. This covers a vast majority of single-zone residential mini-split applications. Always double-check your specific unit’s requirements for line set sizes.

Anyone Prioritizing Speed and Efficiency: For those who want to get their mini-split system up and running quickly, this line set is a game-changer. The pre-flared and insulated design means less time spent on preparation and more time on actual assembly. This can be particularly valuable for projects with tight deadlines or for those who simply want to minimize disruption.

Those Seeking a Reliable Connection: By eliminating the variable of manual flaring, this line set offers a factory-precision connection point. This can lead to a more reliable, leak-free system compared to hand-flared connections, especially if the installer is not highly experienced. A good connection is fundamental to system performance and longevity.

Homeowners in Moderate Climates: The 3/8-inch PE insulation is effective for most moderate climates. While additional protection might be considered for extreme conditions, for typical temperature ranges, this insulation provides excellent thermal performance, contributing to energy efficiency throughout the year.

Small Business Owners: For small businesses or workshops that need to install a mini-split system without hiring expensive HVAC contractors, this line set provides a cost-effective and manageable solution. It allows businesses to control their climate efficiently without a significant capital outlay for installation labor.

This Mini Split Line Set is not necessarily for everyone. If you have a very large mini-split system requiring different line sizes, or if you are a seasoned HVAC professional who prefers to flare lines custom on-site, this kit might not be your primary choice. However, for the majority of residential and small commercial installations, particularly those involving DIY or semi-professional efforts, it presents an outstanding value and convenience.

Ultimately, this line set is tailored for individuals and projects where ease of installation, reliability of connections, and cost-effectiveness are top priorities. It streamlines a complex process, making mini-split air conditioning and heating more accessible to a broader audience.

FAQ about Mini Split Line Set

Here are some frequently asked questions about the Mini Split Line Set and its installation, providing essential information for potential buyers and installers.

Q1: What does ‘pre-flared’ mean, and why is it important?

A1: ‘Pre-flared’ means that the ends of the copper pipes have already been shaped into a specific cone-like form using specialized tools. This flare is critical for creating a tight, leak-proof seal when connected to the mini-split’s indoor and outdoor units using flare nuts. It’s important because improper flaring is a common cause of refrigerant leaks, which can lead to system malfunction and costly repairs. Pre-flared lines eliminate the need for manual flaring, saving time and reducing the risk of errors.

Q2: What are the specific pipe diameters included in this line set?

A2: This particular Mini Split Line Set includes two copper pipes with outer diameters (O.D.) of 3/8 inch and 1/4 inch. These are standard sizes for many mini-split systems, especially those with cooling capacities typically ranging from 9,000 BTU to 24,000 BTU. Always consult your mini-split unit’s installation manual to confirm the required line set dimensions before purchasing.

Q3: Is the insulation on this line set sufficient for all climates?

A3: The 3/8-inch thickened PE (polyethylene) insulation provided with this line set offers good thermal protection for most moderate climates. It helps maintain refrigerant temperature and prevents condensation. However, in extremely hot, cold, or humid environments, or areas with intense UV exposure, adding an extra layer of protective wrap or a hard line set cover might be beneficial to enhance insulation effectiveness and prolong the life of the line set. You can find more information on insulation best practices from sources like the Department of Energy.

Q4: Can I cut this 25-foot line set if I only need a shorter length?

A4: Yes, you can cut the Mini Split Line Set to a shorter length if your installation requires it. However, doing so will mean you lose the pre-flared end on the cut side. You would then need a proper copper tubing cutter, a deburring tool, and a flaring tool to create a new, perfect flare on the cut end. If you are not experienced with flaring, it’s generally recommended to use the full length or purchase a line set that matches your exact required length to avoid the need for re-flaring.

Q5: Are the flared nuts included with the line set?

A5: Yes, this line set explicitly states that it comes with flared nuts already attached to the pre-flared ends of the copper tubing. This is a significant convenience, as it means the line set is ready for direct connection to your mini-split units without needing to source or attach separate nuts. Ensure these nuts are tightened correctly to prevent leaks, often requiring a torque wrench to meet manufacturer specifications.

Q6: What type of refrigerant is this line set compatible with?

A6: This copper Mini Split Line Set is generally compatible with common refrigerants used in modern mini-split systems, such as R410A and R32. Copper tubing is the standard material for refrigerant lines due to its chemical stability and pressure handling capabilities with these refrigerants. Always ensure your mini-split unit’s refrigerant type matches the system’s specifications. For general information on refrigerants, you can consult HVAC industry resources or manufacturer guidelines.

Q7: How do I protect the line set from damage or UV exposure once installed?

A7: To protect the installed line set, especially the outdoor portion, you can use several methods. A common approach is to wrap it with specialized UV-resistant PVC tape or line set cover tape. Alternatively, you can install a rigid line set cover or conduit, which provides excellent physical protection and aesthetic appeal. This helps prevent degradation of the insulation from sun exposure, animal damage, or accidental impacts, ensuring long-term efficiency and appearance.

Q8: Can this line set be used for multi-zone mini-split systems?

A8: This specific Mini Split Line Set, with its single pair of 3/8″ and 1/4″ lines, is designed for a single indoor unit connection. For multi-zone mini-split systems, where one outdoor unit connects to multiple indoor units, you would need a separate line set for each indoor unit. Each indoor unit will have its own pair of refrigerant lines connecting back to the outdoor condenser. Therefore, if you have a 3-zone system, you would need three separate line sets of appropriate sizes.

Final Verdict

The Mini Split Line Set stands out as an exceptional choice for anyone planning a mini-split AC or heat pump installation, particularly for DIY enthusiasts and first-time installers. Its pre-flared ends and integrated, thickened PE insulation significantly simplify what can often be the most challenging part of the installation process. This convenience translates directly into saved time, reduced effort, and a lower risk of costly errors, making it an incredibly valuable component.

While its specific pipe diameters (3/8″ and 1/4″) mean it’s best suited for smaller to mid-sized mini-split units, this covers a large segment of the residential market. The 25-foot length offers ample flexibility for most layouts. The quality of the copper and insulation underscores its commitment to durability and energy efficiency, ensuring your system performs optimally for years to come.

Considering its competitive price point and the inherent benefits of a ready-to-install solution, this line set represents an outstanding value. It empowers homeowners to confidently undertake mini-split installations, bridging the gap between professional-grade results and DIY accessibility. For a reliable, efficient, and straightforward connection for your mini-split system, this kit is highly recommended.
