DC97-17004B Washer Flange: Essential Assembly Worth It

The DC97-17004B Washer Flange shaft assembly is a critical component for restoring the functionality of many Samsung washing machines. When your washing machine starts making unusual noises, vibrating excessively, or failing to spin properly, a worn or broken spider arm assembly is often the culprit. This replacement part offers a direct solution, aiming to bring your appliance back to optimal working condition without the need for a costly new machine.

DC97-17004B Washer Flange Overview

The DC97-17004B Washer Flange shaft assembly is a crucial internal component designed specifically for Samsung front-load and some top-load washing machines. Also commonly referred to as the spider arm or spider bracket, this part connects the inner wash tub to the drive shaft, allowing it to spin during the wash and spin cycles. Over time, due to constant exposure to water, detergents, and the mechanical stresses of heavy loads, this component is susceptible to corrosion and eventual failure.

When the original spider arm fails, symptoms can include loud banging noises, severe vibrations during the spin cycle, the inner tub becoming loose or wobbly, or the machine simply refusing to spin at all. Replacing this part is a common repair for many Samsung washing machine owners facing these issues. The DC97-17004B is designed to be a direct replacement for several older part numbers, including DC97-17004A, DC97-17004E, AP5800144, and 4000061, ensuring broad compatibility across a range of Samsung models. This broad compatibility makes it a go-to solution for many DIY repair enthusiasts and professional technicians alike.

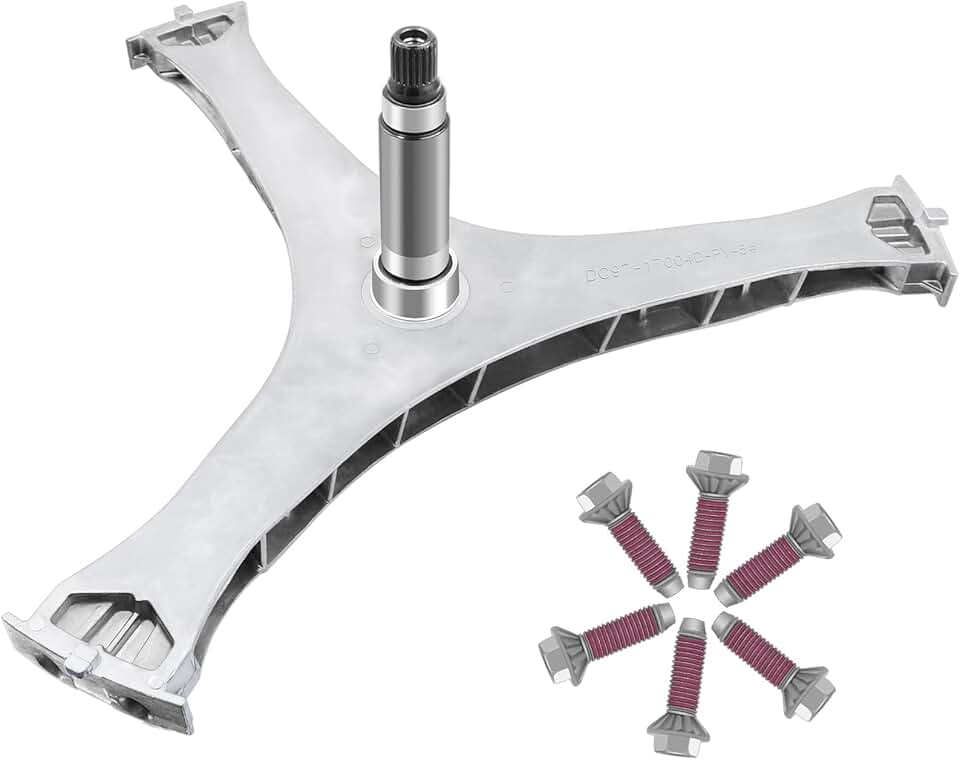

This specific assembly typically comes with the flange shaft itself and a set of six spider hex bolts. These bolts are essential for securely attaching the new spider arm to the wash tub. The inclusion of new bolts is a significant advantage, as the old bolts are often corroded and difficult to remove, or may be compromised themselves.

The material composition of the spider arm is usually a cast aluminum alloy, which, while robust, is prone to galvanic corrosion when exposed to certain detergents and minerals in water over extended periods. Understanding this vulnerability is key to comprehending why this part needs replacement.

The design of the DC97-17004B Washer Flange aims to replicate the original equipment manufacturer (OEM) specifications, ensuring a proper fit and function. While it is not always an OEM part itself, many aftermarket versions strive for identical dimensions and material strength to provide a reliable repair. The goal is to restore the machine’s balance and spin efficiency, which is vital for effective laundry care and preventing further damage to other internal components like bearings. A properly functioning spider arm ensures the tub spins smoothly and quietly, enhancing the overall user experience.

For those considering this repair, it is imperative to verify compatibility with their specific Samsung washing machine model number. While the part numbers listed provide a good starting point, cross-referencing with the appliance’s service manual or an online parts diagram is highly recommended. This due diligence ensures that the correct part is ordered, preventing delays and frustration. The cost-effectiveness of replacing this single component versus purchasing a new washing machine makes it an attractive option for many homeowners.

The average lifespan of a washing machine can be significantly extended by addressing component failures like a worn spider arm. Investing in a quality replacement like the DC97-17004B Washer Flange can add several years of service to an otherwise functional appliance. This not only saves money but also reduces electronic waste, contributing to a more sustainable approach to home appliance ownership. The repair process, while challenging, is a testament to the repairability of modern appliances, given the right parts and tools. More information on Samsung washing machine parts can be found on their official support site: Samsung Support.

DC97-17004B Washer Flange Key Features & Specifications

The DC97-17004B Washer Flange assembly comes with several key features and specifications that make it a suitable replacement part for many Samsung washing machines. Understanding these details is crucial for assessing its value and ensuring it meets your specific repair needs. The primary function of this component is to connect the inner wash tub to the drive shaft, enabling the tub to spin smoothly and efficiently.

One of the most important features is its broad compatibility. This particular flange shaft assembly is designed to replace multiple older or alternative part numbers, including DC97-17004A, DC97-17004E, AP5800144, and 4000061. This extensive cross-compatibility means that if your Samsung washer requires one of these parts, the DC97-17004B is likely a suitable substitute. Always double-check your washing machine’s model number against the compatibility list provided by the seller or manufacturer to confirm a perfect fit.

The material construction of the flange is typically a high-grade aluminum alloy. While aluminum is lightweight and strong, its specific composition and protective coatings are vital for resisting the harsh, corrosive environment inside a washing machine. The quality of this alloy directly impacts the part’s longevity and its ability to withstand repeated cycles of water, detergent, and mechanical stress. Inferior materials can lead to premature corrosion and a return of the original problem.

A significant advantage of this particular replacement package is the inclusion of six spider hex bolts. These specialized bolts are critical for mounting the spider arm securely to the wash tub. Often, the original bolts are severely corroded and stripped, making removal difficult and reuse impossible. Having new, clean bolts ensures a secure and lasting installation, preventing future issues related to loose connections or further damage to the tub or shaft. The hex head design typically allows for a stronger torque application during installation.

In terms of dimensions, the DC97-17004B Washer Flange is precision-engineered to match the exact measurements of the original Samsung part. This includes the shaft length, the diameter of the central bore, and the spacing and size of the mounting arms and bolt holes. These precise dimensions are paramount for maintaining the balance of the wash tub during high-speed spin cycles. Even slight discrepancies can lead to imbalance, excessive noise, vibration, and further damage to the washer’s bearings or suspension system.

The design also typically features a reinforced central shaft and sturdy arms that radiate outwards to support the tub. This structure is engineered to distribute the load evenly and handle the dynamic forces generated during washing and spinning. The structural integrity of the spider arm is what prevents the inner tub from wobbling or detaching from the drive mechanism. Any signs of cracking or bending on the old part indicate a critical failure that this replacement aims to rectify.

Installation, while challenging, is facilitated by the direct-fit nature of the DC97-17004B. Users report that when the correct part is chosen, it aligns perfectly with existing mounting points. While specific tools like a spanner wrench, socket set, and potentially a gear puller are required, the process is generally straightforward for those with mechanical aptitude. This makes the DC97-17004B Washer Flange a repairable component, extending the life of your appliance rather than forcing a complete replacement. For detailed instructions, consulting a service manual or online repair video specific to your Samsung model is highly recommended.

Pros & Cons of the DC97-17004B Washer Flange

When considering the DC97-17004B Washer Flange for your Samsung washing machine repair, it’s essential to weigh its advantages against its potential drawbacks. This part offers a compelling solution for a common appliance failure, but it’s not without its challenges. Understanding both sides will help you make an informed decision about your repair strategy.

Pros of the DC97-17004B Washer Flange:

• Significant Cost Savings: Replacing the spider arm assembly with the DC97-17004B is vastly more economical than purchasing a brand-new washing machine. This is arguably the biggest advantage, as a new high-efficiency Samsung washer can cost hundreds, if not thousands, of dollars. For a fraction of that price, you can restore full functionality to your existing appliance.
• Extends Appliance Lifespan: By addressing a critical component failure, this replacement part can add several years of useful life to your washing machine. Many other components, such as the motor, pump, and electronics, may still be perfectly functional. This repair helps maximize your initial investment in the appliance.
• Broad Compatibility: The DC97-17004B Washer Flange is designed to replace multiple older part numbers (DC97-17004A, DC97-17004E, AP5800144, 4000061). This wide range of compatibility makes it a versatile solution for owners of various Samsung washing machine models, simplifying the search for the correct part.
• Includes Necessary Hardware: The kit typically comes with six new spider hex bolts. This is a crucial benefit because the original bolts are almost always severely corroded and difficult to remove, often requiring destructive methods. New bolts ensure a clean, secure, and hassle-free reinstallation.
• Restores Optimal Performance: A new spider arm eliminates the symptoms of a failed old one, such as loud noises, excessive vibration, and unbalanced loads. Your washing machine will operate more quietly and efficiently, ensuring clothes are properly spun and dried. This leads to a better user experience and prevents further wear on other components.
• Environmental Benefit: Repairing an appliance rather than replacing it contributes to reducing electronic waste. Opting for a repair with the DC97-17004B Washer Flange is an environmentally conscious decision.

Cons of the DC97-17004B Washer Flange:

• Complex and Time-Consuming Installation: Replacing the spider arm is not a simple task. It requires significant disassembly of the washing machine, often involving removing the outer tub, inner tub, and various other components. This process can be daunting for novices and typically takes several hours, even for experienced DIYers. Special tools, like a spanner wrench and potentially a gear puller, are often necessary.
• Risk of Further Damage: During the disassembly and reassembly process, there’s a risk of damaging other delicate components if not handled carefully. This includes wires, hoses, sensors, and the main tub seal. Incorrect reassembly can lead to leaks or other malfunctions.
• Potential for Recurring Corrosion: The original spider arms are prone to corrosion due to the aluminum alloy’s reaction with detergents and water minerals over time. While the DC97-17004B is a replacement, if it uses the same or similar materials without improved protective coatings, it may eventually suffer from the same corrosion issues down the line. This means the repair might not be a permanent fix for the underlying design vulnerability.
• Requires Mechanical Aptitude: This is not a repair for everyone. A good level of mechanical aptitude, patience, and access to detailed repair guides or videos is essential. Those uncomfortable with complex appliance repairs might need to hire a professional, which adds to the overall cost.
• Warranty Concerns for DIY: Performing a DIY repair might void any remaining warranty on your washing machine, although for a part like this, the original warranty is likely expired anyway. Still, it’s a consideration for newer machines.

In summary, the DC97-17004B Washer Flange offers a highly cost-effective and environmentally friendly solution for extending the life of a failing Samsung washing machine. However, the complexity of the installation and the inherent design vulnerability to corrosion are important factors to consider. For the mechanically inclined, it’s a rewarding repair that can save significant money. For others, professional assistance might be a necessary, albeit added, expense.

Who Should Buy the DC97-17004B Washer Flange?

The DC97-17004B Washer Flange is a specific replacement part, meaning it’s not for every washing machine owner. This section will help you determine if this part is the right purchase for your particular situation. It’s crucial to identify the problem accurately and assess your own capabilities before embarking on this repair.

Firstly, this part is exclusively for owners of Samsung washing machines that exhibit specific symptoms. If your Samsung washer is making loud grinding or banging noises, vibrating excessively during the spin cycle, or if the inner tub feels loose and wobbly when empty, a failed spider arm assembly is a very strong suspect. These are classic indicators that the original flange has corroded or broken.

Secondly, the DC97-17004B Washer Flange is ideal for individuals who are mechanically inclined and comfortable with DIY appliance repair. The installation process is complex, requiring significant disassembly of the washing machine. You will need a good set of tools, including socket wrenches, screwdrivers, possibly a spanner wrench, and potentially a gear puller. Patience and attention to detail are paramount to successfully complete this repair.

Those who have successfully tackled other home appliance repairs, car maintenance, or similar mechanical projects will likely find this task manageable. There are numerous online resources, including YouTube videos and repair forums, that can guide you through each step. Access to these resources and the willingness to follow them carefully are key prerequisites.

Furthermore, this replacement part is an excellent choice for those looking to save money. The cost of a new washing machine can be prohibitive, and even professional repair services can be expensive due to labor costs. By purchasing the DC97-17004B Washer Flange and performing the repair yourself, you can significantly reduce expenses, making it a highly cost-effective solution.

If your washing machine is otherwise in good condition – meaning the motor, pump, control board, and other major components are still functioning well – then replacing the spider arm is a smart investment. It extends the life of an expensive appliance, preventing unnecessary waste and offering a sustainable approach to appliance ownership. This is particularly relevant for machines that are only a few years old and haven’t reached the end of their typical lifespan.

You should also consider this part if you are specifically looking to replace one of the compatible part numbers: DC97-17004A, DC97-17004E, AP5800144, or 4000061. Always verify your washer’s model number against the compatibility list to ensure a precise fit. Purchasing the wrong part will only lead to frustration and delays in your repair efforts. This due diligence is a critical step before making a purchase.

Conversely, if you are not comfortable with complex mechanical tasks, lack the necessary tools, or prefer to avoid the potential for accidental damage, then hiring a professional appliance technician might be a better option. While more expensive, it ensures the repair is done correctly and safely. However, even in such cases, having the DC97-17004B Washer Flange on hand might reduce the overall cost if your technician is willing to install customer-supplied parts. Always discuss this with your technician beforehand.

In conclusion, the DC97-17004B Washer Flange is best suited for DIY-savvy Samsung washing machine owners experiencing specific tub balance or spin issues, who are eager to save money and extend the life of their appliance. It’s a challenging but rewarding repair for those with the right skills and mindset. For background information on washing machine mechanics, you can consult resources like Wikipedia’s Washing Machine entry.

FAQ about the DC97-17004B Washer Flange

Here are some frequently asked questions about the DC97-17004B Washer Flange, its function, compatibility, and the repair process. These answers aim to provide clarity and assist you in your decision-making and repair efforts.

Q1: What exactly is the DC97-17004B Washer Flange, and what does it do?

A1: The DC97-17004B Washer Flange, often called the spider arm or spider bracket, is a metal component with three arms that attaches to the back of the inner wash tub in your Samsung washing machine. Its primary function is to connect the inner tub to the drive shaft, allowing the tub to rotate freely and balance during the wash and spin cycles. When it fails, the tub becomes unstable.

Q2: How do I know if my washing machine needs a new DC97-17004B Washer Flange?

A2: Common symptoms of a failing spider arm include loud grinding, banging, or scraping noises during operation, especially during the spin cycle. You might also notice excessive vibration, the inner tub feeling loose or wobbly when pushed by hand, or the machine failing to spin altogether. These issues are typically caused by corrosion and breakage of the flange arms.

Q3: Is the DC97-17004B Washer Flange compatible with all Samsung washing machines?

A3: No, it is not compatible with all Samsung washing machines. The DC97-17004B is designed to fit a specific range of Samsung front-load and some top-load models. It replaces part numbers DC97-17004A, DC97-17004E, AP5800144, and 4000061. You must verify compatibility by checking your washing machine’s exact model number against the product’s compatibility list, usually found on the seller’s page or your appliance’s service manual.

Q4: What materials is the DC97-17004B Washer Flange typically made from?

A4: This part is usually constructed from a cast aluminum alloy. While aluminum is generally strong and lightweight, the constant exposure to water, detergents, and chemicals in the washing environment can lead to galvanic corrosion over time. This corrosion weakens the metal, causing the arms to crack or break, which is the primary reason for failure.

Q5: Is replacing the DC97-17004B Washer Flange a difficult DIY repair?

A5: Yes, replacing the DC97-17004B Washer Flange is considered a moderately to highly difficult DIY repair. It requires extensive disassembly of the washing machine, including removing the outer tub, inner tub, and various other components. You will need specific tools, mechanical aptitude, patience, and ideally, a detailed repair guide or video tutorial for your specific washer model. It is not recommended for beginners.

Q6: Does the DC97-17004B Washer Flange come with new bolts?

A6: Yes, typically the DC97-17004B Washer Flange assembly includes a set of six new spider hex bolts. This is a significant benefit because the original bolts are often severely corroded and difficult to remove. Using new bolts ensures a secure and proper installation of the new flange to the wash tub, preventing future issues caused by compromised hardware.

Q7: What tools are generally needed for this repair?

A7: Essential tools usually include a socket wrench set, screwdrivers (Phillips and flathead), pliers, and potentially a spanner wrench for the tub nut. In some cases, a gear puller might be necessary to remove the inner tub from the shaft if it’s seized due to corrosion. A good work light, towels, and a camera to document disassembly steps are also highly recommended.

Q8: How long can I expect the new DC97-17004B Washer Flange to last?

A8: The lifespan of a replacement DC97-17004B Washer Flange can vary depending on usage, water quality, and detergent type. While it’s designed to restore your machine, if the underlying corrosive environment remains, it might eventually suffer the same fate as the original part. However, with proper care, such as using less harsh detergents and performing occasional tub cleaning cycles, it can extend your washer’s life by several years. Some users report that aftermarket parts can sometimes be more robust than the original due to material improvements, but this is not guaranteed.

Final Verdict on the DC97-17004B Washer Flange

The DC97-17004B Washer Flange shaft assembly presents itself as an essential and ultimately worthwhile investment for Samsung washing machine owners grappling with common tub instability and noise issues. Our comprehensive review highlights its critical role in restoring appliance functionality and its value proposition as a cost-effective repair solution. This part directly addresses the notorious spider arm corrosion problem that plagues many Samsung models, offering a path to extend the life of your machine rather than incurring the expense of a full replacement.

From a financial standpoint, the decision to purchase the DC97-17004B Washer Flange is sound. The price of this replacement part is a fraction of the cost of a new washing machine, making it an attractive option for budget-conscious homeowners. The inclusion of new spider hex bolts in the package further enhances its value, saving you the hassle and potential additional cost of sourcing these critical fasteners separately. This attention to detail in the kit ensures a more complete and straightforward repair.

However, it is crucial to temper enthusiasm with a realistic understanding of the installation process. Replacing the DC97-17004B Washer Flange is not a task for the faint of heart or the inexperienced. It demands significant mechanical aptitude, a comprehensive set of tools, and a considerable time commitment. Disassembling and reassembling a washing machine to this extent can be challenging, and there is a non-negligible risk of causing further damage if not executed carefully. Therefore, prospective buyers should honestly assess their DIY skills before committing to this repair.

The broad compatibility of the DC97-17004B, designed to replace several older Samsung part numbers, is a significant advantage. This simplifies the search for the correct component, but diligent cross-referencing of your washer’s model number remains absolutely vital. Ensuring you have the right part before you begin the repair will save immense frustration and potential delays. The precision engineering to match OEM specifications is intended to restore your washer to its original balanced and quiet operation.

Despite the challenges, the environmental benefit of repairing an appliance instead of sending it to a landfill cannot be overstated. Opting for the DC97-17004B Washer Flange contributes to reducing electronic waste and promotes a more sustainable consumer mindset. This repair empowers homeowners to take control of their appliance longevity, fostering a sense of accomplishment alongside significant savings.

In conclusion, if you own a compatible Samsung washing machine exhibiting symptoms of a failed spider arm, possess the necessary DIY skills and tools, and are looking for a highly cost-effective way to extend your appliance’s life, the DC97-17004B Washer Flange is an excellent and truly worthwhile purchase. It offers a powerful solution to a common problem, making your washer run smoothly once again. For those less confident in their repair abilities, professional installation remains an option, but the part itself is a solid foundation for repair.
